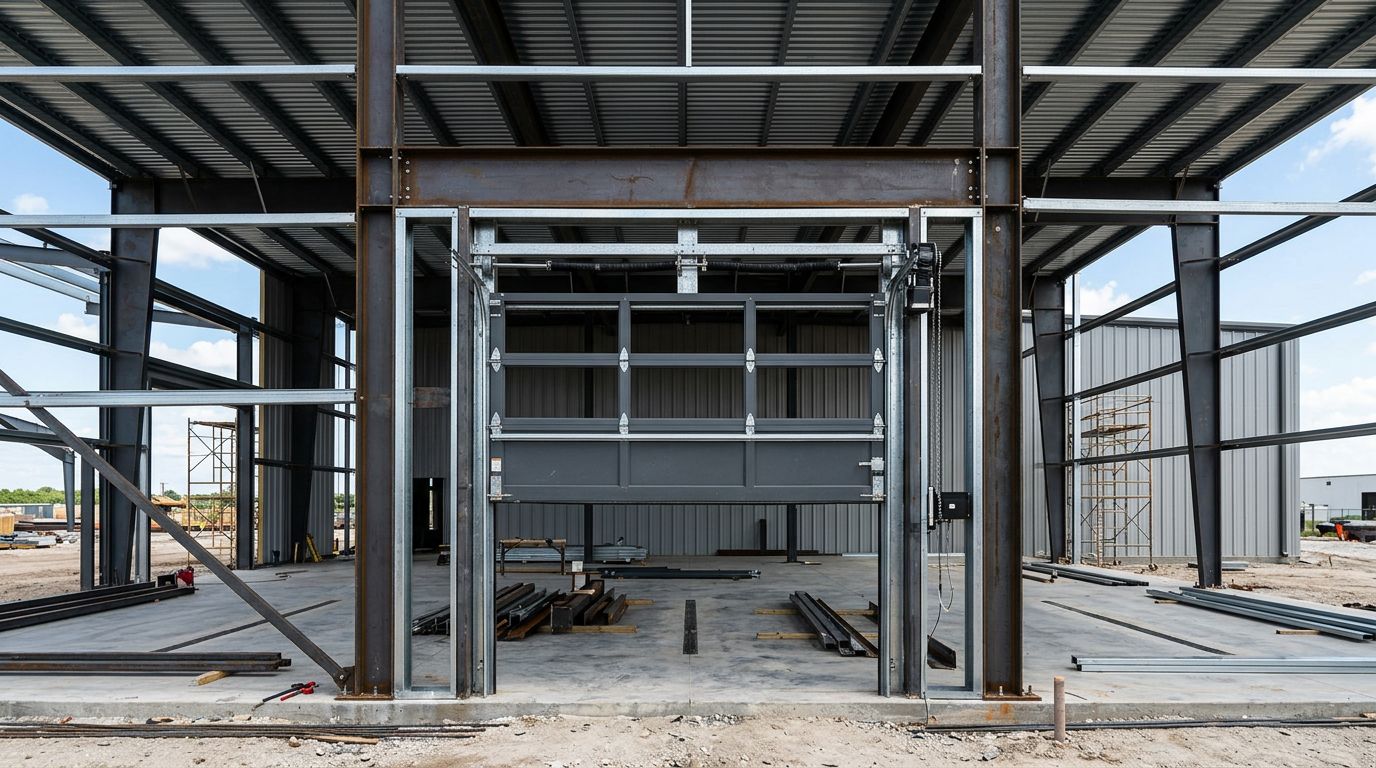

Steel Building Door Framing: Headers, Jambs, Clearances

An overhead door can fit the wall opening and still lack room for its tracks, springs, or operator. Good steel building door framing coordinates the structure and the door's operating space before fabrication.

For Florida shops, garages, and agricultural buildings, that coordination also includes wind pressures, foundation connections, and weather protection. Header and jamb sizes, connections, bracing, and clearances must match the building manufacturer's design, the overhead door supplier's requirements, and the applicable project requirements.

Start with the door selection and opening drawings before ordering framing or cutting panels.

Key Takeaways

• Select the door type and hardware before finalizing the framed opening.
• Have the building manufacturer and qualified design professional confirm headers, jambs, connections, and bracing.
• Get clearances and mounting requirements for the specific door configuration from its supplier.
• Coordinate wind resistance, anchorage, flashing, and field measurements before installation.

Plan Steel Building Door Framing Around the Door

Confirm the Door Type and Opening Dimensions

A sectional overhead door follows tracks upward and usually turns beneath the roof. A rolling steel door coils above the opening. Each arrangement needs different mounting surfaces and operating space.

Before finalizing the building, identify the door model, nominal size, lift configuration, operator, and wind-pressure requirements. Then obtain its installation drawings.

Keep three dimensions separate: the nominal door size, the framed opening, and the finished clear passage. Trim, seals, guides, and hardware can affect the usable opening. The supplier must confirm how these dimensions relate for the selected product.

Match the Building Drawings to the Door Drawings

Locate the opening relative to columns, wall girts, eaves, and the finished floor elevation. Check that roof framing won't occupy the track or operator space.

Mid Florida Metal Roofing Supply's steel building installation manuals include construction-package information covering framing, anchor placement, opening spacing, and panel layout.

Use the project's current drawings alongside the door supplier's drawings. Resolve conflicting dimensions before fabrication, and carry approved revisions into both packages.

Headers: Span, Loads, and Attachment Surfaces

Size the Header for Its Actual Role

The header crosses the top of the opening. Its design depends on the span, supported loads, member orientation, connections, and allowable movement.

Some headers support wall panels and adjacent girts. Others also receive door hardware loads or participate in a larger structural assembly. Roof loads belong on the header only when the building design assigns them there.

Strength alone doesn't settle the selection. Excessive movement can affect panel alignment, door seals, and hardware operation. The design professional must check the applicable strength and serviceability requirements.

Match the Section to the Connection Details

Mid Florida Metal Roofing Supply lists Cee and Zee steel building secondary framing with web depths of 4, 6, 8, 9, and 12 inches. Listed finishes include red oxide and G90 galvanized steel.

Those options are available products, not approved header sizes for a particular opening. Gauge, section geometry, steel properties, and bracing affect capacity.

The connection detail also matters. A bracket fastened to a thin flange may need reinforcement or a different attachment arrangement. Confirm where spring anchors, bearings, and other hardware attach, including any supplemental framing specified by the coordinated design.

Jambs: Door Support and a Reliable Load Path

Provide the Required Mounting Surface

Jambs form the sides of the opening and support the specified door attachments. Sectional-door track brackets and rolling-door guides need suitable mounting surfaces.

Coordinate jamb width, orientation, and attachment access with the door supplier. Also account for trim and seals so they don't occupy required mounting space.

A jamb that looks substantial may still lack the required fastener engagement or stiffness. Don't substitute panel ribs or decorative trim for structural backing. Confirm the permitted attachment locations and whether the hardware requires reinforcing plates, angles, or another designed support.

Carry Loads Through the Connections

Jamb design includes the connections at the top, bottom, and any intermediate supports. Door reactions must reach the building structure or foundation through the intended load path.

Base connections require coordination with the slab or footing design. Anchor type, embedment, spacing, edge distance, and concrete conditions must match the project documents.

Likewise, a jamb connection to a wall girt needs design confirmation. A girt sized for wall panels doesn't automatically have capacity for added door reactions. Field-added screws, welded tabs, or anchors aren't substitutes for approved connection details.

Overhead Door Clearances Need Their Own Layout

Opening width and height don't describe the space needed to operate the door. Check the full hardware envelope against roof framing, lights, insulation, utilities, and any planned ceiling.

These terms describe the main spaces to verify with the supplier.

Required clearances are product-specific. Get dimensioned requirements for the exact door, lift arrangement, spring system, and operator.

Low-headroom, high-lift, and vertical-lift sectional doors use different track arrangements. Rolling doors generally concentrate their coil and hood above the opening, but their guides and operators also need space.

Don't assume changing the track arrangement leaves the framing unchanged. Different hardware locations can change the required mounting surfaces and reactions.

Finally, verify the height against the finished floor, not an unfinished slab datum. Include the supplier's installation tolerances and maintenance access requirements. A door may operate within a tight space while leaving inadequate room to service its components.

Florida Wind Loads and Bracing Around Openings

Coordinate the Door Rating and Supporting Frame

Florida projects need door and framing selections that address the site's required wind pressures. Those pressures depend on project-specific factors, including location, exposure, building geometry, and the governing design criteria.

Confirm the door's required positive and negative design pressures and any applicable product approval documentation. Also check whether the project falls within Miami-Dade or Broward County's High-Velocity Hurricane Zone requirements.

The supporting jambs, header, anchors, and connections must accept the supplier's specified reactions.

Preserve the Building's Lateral System

A large opening can conflict with diagonal wall bracing or interrupt framing that transfers lateral forces. Moving a door therefore requires more than shifting panel cuts.

Roof diaphragms, collectors, and braced bays work together to resist horizontal loads. Mid Florida Metal Roofing Supply's explanation of metal roof diaphragm load paths describes how forces reach the lateral framing.

If the opening conflicts with bracing, ask the building manufacturer and structural engineer for a revised arrangement. Don't remove braces or assume the surrounding panels will replace them. Any replacement system needs designed members and connections.

Check Alignment Before Installing Panels and Hardware

Verify the Opening in the Field

Check opening width at multiple elevations and height at both jambs. Compare diagonal measurements, then verify plumb, level, and the mounting-face alignment.

Diagonal measurements help identify an out-of-square opening, but they don't replace plumb and alignment checks. Also verify anchor positions and the finished floor elevation against the drawings.

Complete these checks before enclosing the frame. Bowed girts, shifted columns, and uneven jamb faces can carry through into the siding and door installation.

If measurements exceed the specified tolerances, stop and obtain an approved correction. Don't use trim to conceal a framing problem.

Integrate Flashing Without Obstructing Hardware

Coordinate the panel profile, jamb trim, head flashing, seals, and any specified wall drainage layer. Structural framing and flashing solve different problems, so both need correct details.

Install head flashing over the jamb-flashing detail so water drains outward. The guidance for metal siding trim around overhead doors also calls for fastening trim to solid framing and keeping screws clear of hardware.

Check fastener lengths as well as locations. Protruding screws can interfere with tracks, brackets, or moving parts. Closures and sealants must follow the wall detail without blocking intended drainage outlets.

Define the Supply Scope Before Ordering

A framed opening and a complete operating door are separate purchases unless the quote says otherwise. Confirm who supplies the header, jambs, brackets, anchors, reinforcing pieces, door, tracks, springs, operator, trim, and installation.

Mid Florida Metal Roofing Supply's steel building kit ordering questions highlight that door-related inclusions vary by package.

For an accurate quote, provide the opening schedule, current building drawings, selected door information, finish requirements, and delivery needs. Ask which items remain subject to engineering or supplier confirmation.

Pricing depends on more than opening size. Reinforcement, custom connections, finish selection, and hardware can change the scope.

Keep responsibility for structural design, door installation, and weather detailing clear. That helps prevent missing components and unapproved field changes.

Frequently Asked Questions

Can I Select a Header by Door Width Alone?

No. Width establishes the span, but it doesn't establish loads, stiffness, bracing, or connection capacity. The building manufacturer and qualified design professional must confirm the section and details for the project.

Can Wall Girts Support Overhead Door Tracks?

Only when the coordinated design permits it. Girts may need reinforcement or separate mounting framing because track reactions differ from ordinary wall-panel loads. Get confirmation before attaching brackets.

Is There a Standard Headroom Allowance?

There isn't a universal allowance for every overhead door. Door type, lift arrangement, springs, and operator affect the requirement. Obtain clearances for the selected configuration before fixing the header elevation.

Can I Add an Overhead Door to an Existing Steel Building?

An existing building needs a review of its framing, bracing, foundation, and wind-load requirements. Cutting panels doesn't create a structurally approved opening. Have the proposed location and supporting details evaluated before modifying the building.

Build the Opening as One Coordinated System

Reliable steel building door framing starts with coordinated drawings . The header, jambs, connections, bracing, foundation, and door hardware must meet the same project requirements.

Confirm the selected door's mounting details and clearances before fabrication. Then check the opening before installing panels and hardware.

That sequence helps deliver an opening that supports the specified loads, sheds water, and gives the door room to operate.
